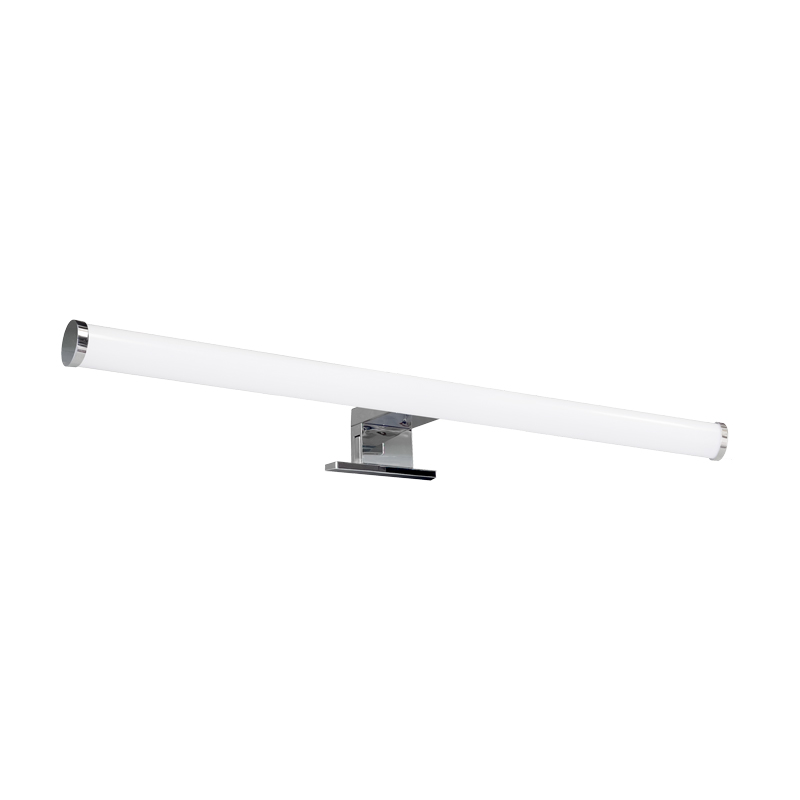

High Cost PerformanceLED Mirror Light JY-ML-R
Specification
| Model | Power | CHIP | Voltage | Lumen | CCT | Angle | CRI | PF | Size | Material |
| JY-ML-R3.5W | 3.5W | 21SMD | AC220-240V | 260±10%lm | 3000K 4000K 6000K |
330° | ＞80 | ＞0.5 | 180x95x40mm | ABS |
| JY-ML-R4W | 4W | 21SMD | AC220-240V | 350±10%lm | 330° | ＞80 | ＞0.5 | 200x95x40mm | ABS | |
| JY-ML-R5W | 5W | 28SMD | AC220-240V | 430±10%lm | 330° | ＞80 | ＞0.5 | 300x95x40mm | ABS | |
| JY-ML-R6W | 6W | 28SMD | AC220-240V | 530±10%lm | 330° | ＞80 | ＞0.5 | 400x95x40mm | ABS | |
| JY-ML-R7W | 7W | 42SMD | AC220-240V | 600±10%lm | 330° | ＞80 | ＞0.5 | 500x95x40mm | ABS | |
| JY-ML-R9W | 9W | 42SMD | AC220-240V | 800±10%lm | 330° | ＞80 | ＞0.5 | 600x95x40mm | ABS |
| Type | Led Mirror Light | ||
| Feature | Bathroom Mirror Lights, Including Built-In Led Light Panels, Are Suitable for All Mirror Cabinets in Bathrooms, Cabinets, Washroom, Etc. | ||
| Model Number | JY-ML-R | AC | 100V-265V, 50/60HZ |
| Materials | ABS | CRI | >80 |
| PC | |||
| Sample | Sample available | Certificates | CE, ROHS |
| Warranty | 2 Years | FOB port | Ningbo, Shanghai |
| Payment terms | T/T, 30% deposit, balance before delivery | ||
| Delivery Detail | Delivery time is 25-50days, sample is 1-2 weeks | ||
| Packaging Detail | Plastic bag + 5 layers corrugated carton. If needed, can be packed into wooden crate | ||
Product Description
Dark and Silvery PC end cap made of chrome, Modern and basic design style, suitable for your bathroom, mirror cabinets, powder room, bedroom and living room and so on.
The IP44 splash water safeguard and the ageless chrome design, composed and refined together, render this lamp the ideal bathroom illuminant for achieving immaculate cosmetics.
3-way to install it:
Glass clip mounting;
Cabinet-top mounting;
On-the-wall mounting.
Product detail drawing
Installation method 1:Glass clip mounting Installation method 2:Cabinet-top mounting Installation method 3:On-the-wall mounting
Project case
【Handy Layout with 3 Approaches to set up this mirror frontal light】
By making use of the provided matching clamp, this mirror luminaire can be affixed to cupboards or the wall, and also serve as an adjunct illuminant directly upon the mirror. The pre-bored and detachable bracket enables uncomplicated, flexible installation on any piece of furnishings.
Waterproof light for mirror in bathroom, IP44, 3.5-9W
Crafted from plastic, this above-mirror fixture features a drive system resistant to splashing and equipped with an IP44-rated protection level, ensuring it is both splash-proof and fog-resistant. With its versatility, this light can be utilized in bathrooms or similarly damp indoor spaces. It is ideal for various applications like mirrored cabinets, bathrooms, mirrors, lavatories, wardrobes, cupboard mirror lights, residences, hotels, workplaces, work stations, and architectural bathroom lighting, etc.
Brilliant, secure, and enjoyable Lamp for Front-Facing Mirrors
This front lamp designed for mirrors offers an evident impartial illumination, presenting an exceedingly authentic appearance devoid of any yellowishness or Blue Shade. It is remarkably fitting to be utilized as a light source for beautification without any shaded regions. No rapid and intense flashes, no unsteady and erratic lighting effects, and the gentle, naturally emerging illumination effectively safeguards the eyes without containing any mercury, lead, Ultraviolet rays, or thermal radiation. Remarkably well-matched for illuminating artwork or pictures, particularly in display settings.
